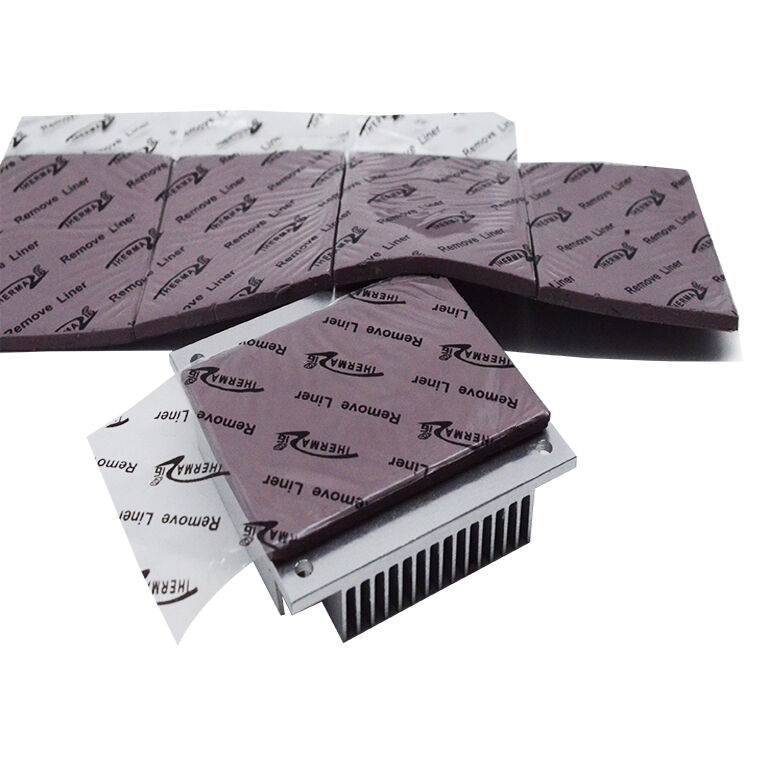

TIF600P Premium Soft Silicone Thermal Pad For AI Processors
TIF®600P Premium Soft Silicone Thermal Pad For AI Processors
The TIF®600P Series is a well-balanced,general-purpose thermal pad. It offers excellent thermal conductivity and moderate hardness . This balanced design provides both good surface conformity and excellent ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between costand performance.
Features:
> Good thermal conductivity: 6.0W/mK
> Ultra soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
> Available in varies thicknesses
> Broad range of hardnesses available
> Outstanding thermal performance
Applications
> AI Servers, Inverters, Telecom Devices
> Power tools
> Network communication products
> Electric vehicle batteries Computer CPU/GPU Cooling
> New energy vehicle power systems
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
| Typical Properties of TIF®600P Series |
| Property |
Value |
Test method |
| Color |
Garnet |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Density(g/cm³) |
3.4 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.020~0.030
(0.50~0.75)
|
0.040~0.200 (1.0~5.0) |
ASTM D374 |
| Hardness |
60 Shore 00 |
45 Shore 00 |
ASTM 2240 |
| Recommended Operating Temperature |
-40 to 200℃ |
*** |
| Breakdown Voltage(V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant |
4.5 MHz |
ASTM D150 |
| Volume Resistivity |
＞4.2X1013 Ohm-meter |
ASTM D257 |
| Flame rating |
V-0 |
UL 94 (E331100) |
| Thermal conductivity |
6.0 W/m-K |
ASTM D5470 |
| 6.0 W/m-K |
ISO22007 |
Product Specifications
Standard Thickness: 0.020"(0.50 mm)-0.20" (5.00 mm) with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
Notes: FG (Fiberglass) provides enhanced strength,
suitable for materials with thicknesses of 0.010" to 0.020" (0.25mm to 0.50mm)
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
